DGS-MZ-1250 – 1250 kVA

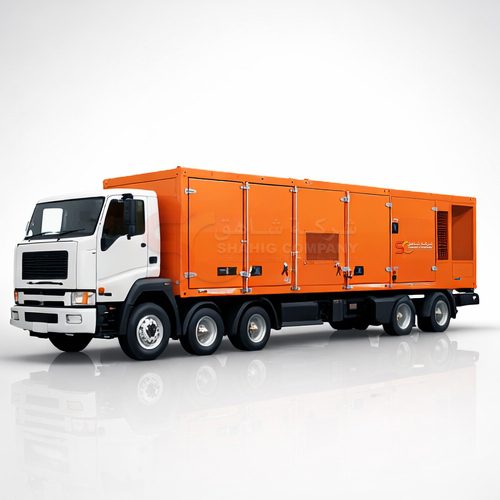

Shahig 1250 kVA Mobile Diesel Generator (DGS-MZ-1250)

A high-capacity mobile-ready generator solution for large temporary power, utility support and rapid deployment applications.

Power Rating (0.8 p.f.)

• Prime Power: 1250 kVA (1000 kW)
• Standby Power: 1375 kVA (1100 kW)

Electrical

• Frequency: 50/60 Hz
• Voltage options: 400/230V or 220/127V
• 3-Phase, 4-wire
• Power factor: 0.8

Gen-Set Composition

• Sound & weather proof canopy
• Noise level: 90 dB(A) ±3 dB(A) @ 1 m
• Autostart control panel with breaker
• Integrated kWh meter
• Distribution panel
• Communication: RS232/RS485 with Modbus RTU
• Cable reels (configuration dependent)
• Warranty: 1 year / 2000 running hours

Dimensions & Weight

• Weight: 16400 kg
• Dimensions (L×W×H): 7000 × 2600 × 2550 mm

Applications

• Utility support and grid reinforcement
• Large industrial loads and critical infrastructure
• Temporary power plants and major events
• Parallel operation and peak support (project based)

Final configuration, accessories and GA drawings are provided during quotation / project approval.

Mobile Configuration Notes

• Transport-ready frame with lifting points (project based)
• Optional: trailer package
• Optional/Project based: cable reels and site distribution solutions
