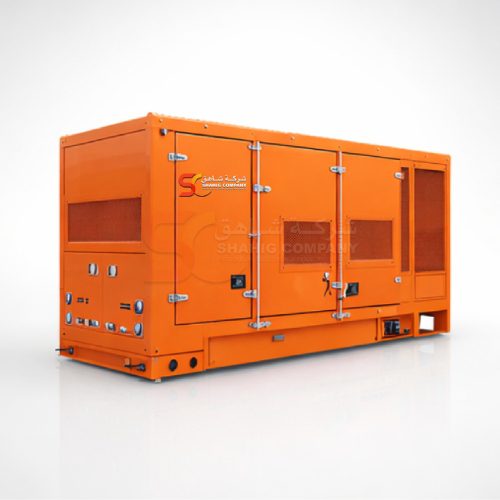

Shahig 300 kVA Fixed Diesel Generator (DGS-VP-0300)
A stationary generator package engineered for dependable on-site standby or prime power. Designed for fixed installations with robust canopy protection and service-friendly access.
Power Rating (0.8 p.f.)
- Prime Power: 300 kVA (259.2 kW)
- Standby Power: 356.4 kVA (285.12 kW)
Electrical
- Frequency: 50/60 Hz
- Voltage options: 400/230V or 220/127V
- 3-Phase, 4-wire
- Power factor: 0.8
Gen-Set Composition
- Sound & weather proof canopy
- Noise level: 90 dB(A) ±3 dB(A) @ 1 m
- Autostart control panel
- Integrated kWh meter
- Voltage selector bypass for switching between 400V and 220V (located on alternator)
- Communication: RS232/RS485 with Modbus RTU
- Service interval: 500 hours
- Warranty: 1 year / 2000 running hours
Dimensions & Weight
- Weight: 5000 kg
- Dimensions (L×W×H): 3695 × 2150 × 2010 mm
Applications
- Utility standby power
- Industrial facilities & construction sites
- Temporary power for events
- Critical services & emergency response
Final configuration, accessories and GA drawings are provided during quotation / project approval.
Fixed Installation Notes
- Stationary skid/baseframe mounting (site foundation by customer)
- Designed for integration with external ATS and switchgear (project based)
- Cable termination and distribution options available on request
