Insulated EUROSFILO-I 15|2|10 JIB DIN-VDE Platform
,

Insulated EUROSFILO-I 15|2|10 JIB DIN-VDE Platform

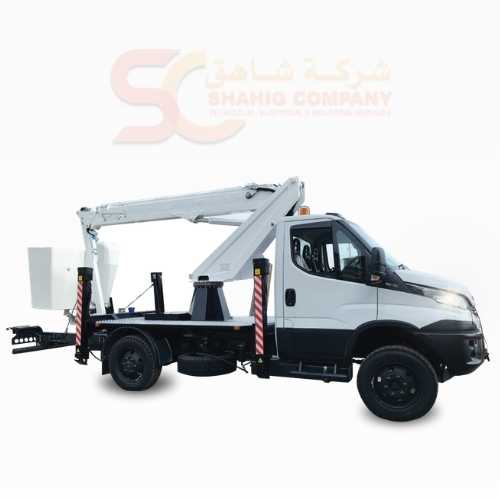

15 m truck-mounted insulated aerial platform for live-line work up to 1 kV DIN/VDE, with 10 m outreach, 200 kg basket capacity, 360° rotation and 100% hydraulic low-pressure controls.

SKU: SHG-INS-F15J Categories: , Tags: , , , , ,

Overview

Insulated EUROSFILO-I 15|2|10 JIB DIN-VDE is designed for aerial work on live low-voltage power lines, with truck integration for rapid deployment.

Technical Data

  • Working height: 15 m
  • Max lateral outreach: 10 m
  • Basket floor: 13 m
  • Max basket capacity: 200 kg
  • Hydraulic outriggers: 4
  • Rotation: 360°
  • Minimum GVW: 3.5 t
  • Insulation: 1 kV DIN/VDE

Features

  • Fiberglass basket insulated up to 1 kV
  • 100% hydraulic low-pressure controls
  • Special insulators and dielectric hoses
  • JIB articulated section for obstacle clearance
  • Emergency ground controls and basket rotation

Applications

  • Low-voltage live-line maintenance
  • Electrical utility service fleets
  • Urban network interventions
Type

Truck-mounted insulated aerial platform
Made in

Italy
Brand

CO.ME.T. Officine
Model

EUROSFILO-I 15, 2, 10 JIB
Compliance

DIN/VDE 1 kV
Working height

15 m
Max lateral outreach

10 m
Basket floor

13 m
Basket capacity

200 kg
Outriggers

4 hydraulic
Rotation

360°
Minimum GVW

3.5 t
Controls

100% hydraulic low pressure
Material

High-strength steel + fiberglass basket
