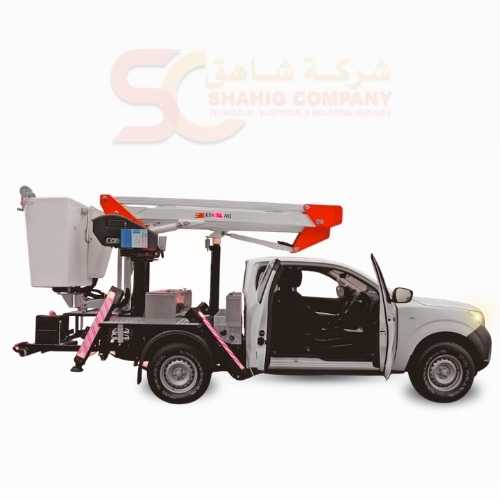

Insulated EUROSKY-I 14|2|6.2(7.6) JIB DIN-VDE Platform
,

Insulated EUROSKY-I 14|2|6.2(7.6) JIB DIN-VDE Platform

14 m truck-mounted insulated aerial platform for live-line work up to 1 kV DIN/VDE, with 6.2 m outreach at 250 kg and 7.6 m at 120 kg, 100% hydraulic low-pressure controls and fiberglass basket.

SKU: SHG-INS-E14J Categories: , Tags: , , , , ,

Overview

Insulated EUROSKY-I 14|2|6.2(7.6) JIB DIN-VDE is a truck-mounted platform designed for operations on live low-voltage lines in compliance with DIN/VDE 1 kV insulation requirements.

Standard Features

  • Fiberglass basket insulated up to 1 kV
  • 100% hydraulic proportional controls in low pressure (25 bar)
  • Special insulators between boom and basket
  • High-strength steel structure and booms
  • Dielectric hoses

Technical Data

  • Working height: 14 m
  • Max outreach: 6.2 m with 250 kg / 7.6 m with 120 kg
  • Rotation: 360° continuous
  • Hydraulic outriggers: 4

Applications

  • Live-line maintenance on LV power lines
  • Distribution utility works
  • Public lighting and network interventions
Type

Truck-mounted insulated aerial platform
Made in

Italy
Brand

CO.ME.T. Officine
Model

EUROSKY-I 14, 2, 6.2(7.6) JIB
Compliance

DIN/VDE 1 kV
Working height

14 m
Max lateral outreach

6.2 m @ 250 kg / 7.6 m @ 120 kg
Rotation

360° continuous
Controls

100% hydraulic low pressure (25 bar)
Basket

Fiberglass insulated basket
Material

High-strength steel boom + fiberglass basket
Weight / chassis

Vehicle/chassis dependent
