Insulated EUROSKY-I 19|2|13 ANSI Platform
,

Insulated EUROSKY-I 19|2|13 ANSI Platform

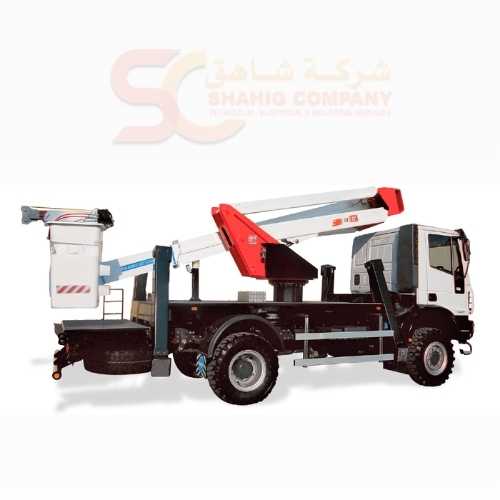

19 m insulated truck-mounted platform with 13 m outreach, 250 kg basket capacity, 360° continuous rotation and ANSI/SIA 92.2 46 kV insulation class.

SKU: SHG-INS-E19A Categories: , Tags: , , , , ,

Overview

Insulated EUROSKY-I 19|2|13 ANSI is designed for live power line operations with an insulated telescopic upper boom and fiberglass basket.

Technical Data

  • Working height: 19 m
  • Max lateral outreach: 13 m
  • Basket floor: 17 m
  • Basket capacity: 250 kg
  • Hydraulic outriggers: 4
  • Rotation: 360° continuous
  • Minimum GVW: 11 t
  • Insulation: 46 kV ANSI/SIA 92.2
  • Basket size: L1192 × W583 × H1056 mm

Features

  • Upper boom telescopic section insulated up to 46 kV
  • 100% hydraulic controls at low pressure (25 bar)
  • High-strength steel booms
  • Basket rotation 90° + 90°
  • Automatic leveling and anti-collision protections

Applications

  • Live-line utility maintenance
  • Electrical line operations
  • Distribution and service fleets
Type

Truck-mounted insulated aerial platform
Made in

Italy
Brand

CO.ME.T. Officine
Model

EUROSKY-I 19, 2, 13 ANSI
Compliance

ANSI/SIA 92.2 – 46 kV
Working height

19 m
Max lateral outreach

13 m
Basket floor

17 m
Basket capacity

250 kg
Outriggers

4 hydraulic
Rotation

360° continuous
Minimum GVW

11 t
Basket size

1192 × 583 × 1056 mm
Material

High-strength steel + fiberglass basket
