Smart Navigator 2.0 HV

Overview

Shahig Smart Navigator 2.0 HV is an overhead-line short-circuit indicator designed to reduce outage times through intelligent fault detection and network condition monitoring.

Key Features

• Intelligent overcurrent-based fault detection with adaptable parameters
• Overhead line monitoring data for network condition evaluation
• Energy harvesting power supply from overhead line current (operation from low load current)
• Remote maintenance: configuration and software updates from the control room
• Installation on live conductors using a hot stick (from the ground)

Applications

• Overhead MV distribution networks
• Fault location and service restoration programs
• Utilities aiming to reduce SAIDI/SAIFI through faster fault sectioning

Technical Data

• Short-circuit trip current: max. 1,200 A
• Reset: manual (magnet), automatic time reset (4 h), current restoration (>3 A), voltage restoration (≥5 kV)
• Current measurement accuracy: ±2 A (0–10 A), 3% (10–600 A)
• Power supply: energy harvesting (line current)
• Max permissible voltage: ≤161 kV (L–L)
• Withstand current: 25 kA / 3 s; 40 kA / 1 s (configuration dependent)
• Communication: DNP3, HTTP/HTTPs/FTP; cellular 2G/4G; TLS
• Cable diameter: up to 33 mm
• Housing: UV resistant polycarbonate, IP68
• Temperature range: −40 to +85 °C

Integrated Components

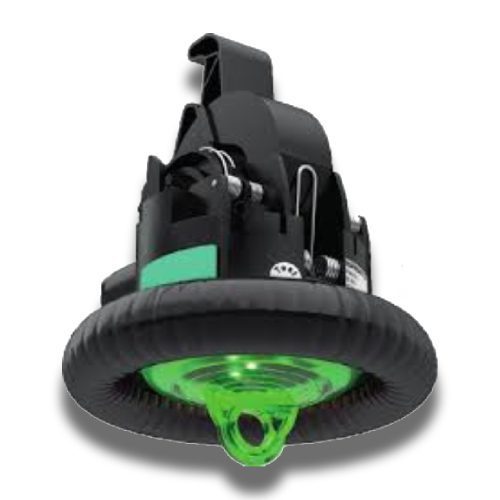

• Overhead line indicator unit with integrated sensing and LED indication
• Clamping mechanism for conductor mounting
• Remote communication interface (WAN) for control room integration

Compliance & Standards

IP68 enclosure; communication/security settings per utility requirements (TLS). Utility approval and radio parameters are project/country dependent.
