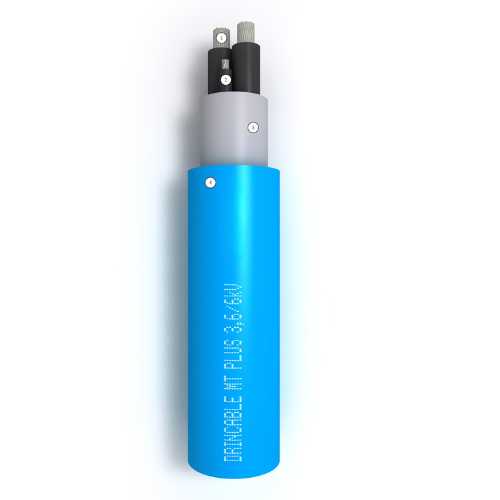

Drincable®MT Plus 3.6/6kV
,

Drincable®MT Plus 3.6/6kV

DRINCABLE®MT PLUS 3.6/6kV
➡️ Rated Voltage: 3.6/6 kV
➡️ Test Voltage: 11 kV
➡️ Working Temp: 90°C
➡️ Short Circuit Temp: 250°C
➡️ Max Water Depth: 300m

Categories: , Tags: , , , ,

MV patented cable for drinking water immersion up to 300m.

Features

  • Non-toxic for drinking water
  • Oil resistance
  • MV
  • Water resistance 300m

Specifications

Conductors: Copper; Insulation: Special MV non-toxic; Outer Sheath: Non-toxic compound

Detailed Technical Data

Electrical: Rated 3.6/6 kV, Test 11 kV; Thermal: 90°C; Mechanical: Depth 300m; Chemical: Oil, no ozone/UV in spec

Compliances and Approvals

Patented; Drinking water approvals; IEC for MV

Applications

MV pumps in drinking water wells, potable systems

Medium voltage version of Drincable for potable water systems. Certified non-toxic, suitable for deep wells in drinking water. Oil resistant.

drinking_water_approved

yes
max_conductor_temp

90°C
max_short_circuit_temp

250°C
max_water_depth

300m
test_voltage

11 kV
voltage

3.6/6 kV
