Airport Ground Power Cable – URSUS FLY 28 VDC
Airport Ground Power Cable – URSUS FLY 28 VDC - Image 2
,

Airport Ground Power Cable – URSUS FLY 28 VDC

Airport Ground Power Cable – URSUS FLY 28 VDC
Lightweight, halogen-free heavy-duty mobile power cable for airport ground power (typical 28 VDC or 115 VAC at 400 Hz). Integrated pilot cores for voltage sensing.

SKU: SHG-AC-FLY28 Categories: , Tags: , , , , , , ,

Overview

URSUS FLY 28 VDC is engineered for airport ground power and mobile connections under severe mechanical stress, using a halogen-free polyurethane sheath and tinned conductors.

Key Features

  • Severe mechanical stress, abrasion and crushing resistance
  • Halogen-free TPU sheath (flame retardant)
  • Integrated pilot cores for voltage sense (remote compensation systems)

Applications

  • Airport ground power (pits, mobile GPU, passenger bridges)
  • Typical systems: 28 VDC or 115 VAC @ 400 Hz

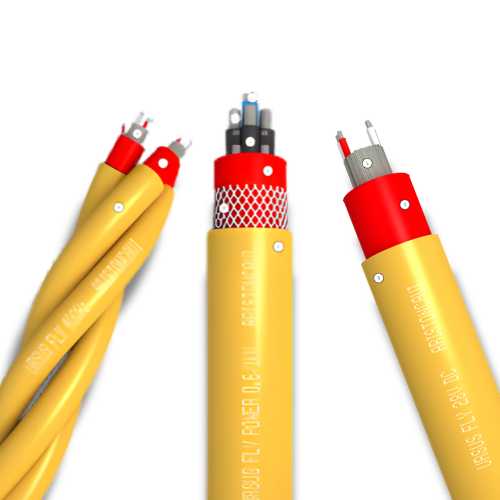

Construction

  • Power conductors: tinned copper, class 6
  • Pilot conductors: tinned copper, class 6
  • Outer sheath: halogen-free TPU, yellow
Model / Series

URSUS FLY 28 VDC
Type

Airport ground power cable
Typical system

28 VDC or 115 VAC @ 400 Hz
Made in

Italy
Power conductors

Tinned copper, class 6
Pilot conductors

4 × 1 mm² (voltage sense)
Outer sheath

Halogen-free TPU, flame retardant (yellow)
Applications

Airport pits, mobile GPU, passenger bridge
