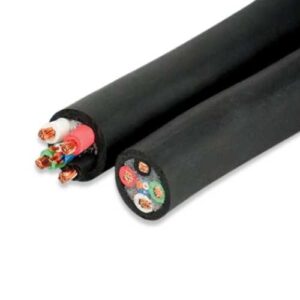

Screened Submersible Power Cable – NAUTILUS 500 S

Screened Submersible Power Cable – NAUTILUS 500 S
Overall screened 0.6/1 kV submersible cable for permanent immersion up to 500 m in fresh/salt/polluted water; optional steel armour for fixed underwater transmission.

Overview

NAUTILUS 500 S is a 0.6/1 kV overall screened flexible cable intended for permanent immersion in demanding water environments and mobile laying conditions.

Key Features

Overall screened construction
Permanent immersion up to 500 m (fresh/salt/polluted water)
Optional steel armour for fixed underwater transmission

Applications

Submersible pumps
Underwater tools and mobile water operations

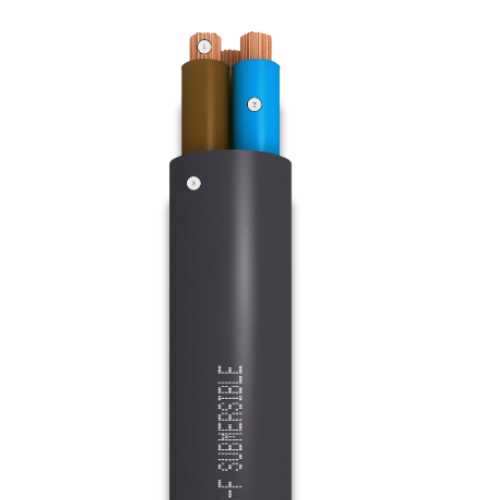

Construction

Conductor: tinned copper, class 5
Screen: tinned copper braid
Outer sheath: water resistant CPE rubber compound

Compliance & Standards

Standard reference: CEI EN 50525-2-21

Ordering: Specify cross-section, armour requirement and length during quotation.

Model / Series	NAUTILUS 500 S
Type	Overall screened submersible power cable
Rated voltage	0.6/1 kV
Made in	Italy
Standard reference	CEI EN 50525-2-21
Conductor	Tinned copper, class 5
Screen	Tinned copper braid
Outer sheath	Water resistant CPE based rubber compound (black)
Max immersion depth	Up to 500 m
Applications	Submersible pumps, underwater tools
